Affiliate reviews Voltage Converter Module DC 5-30V to 1.25-30V,Automatic Step Up/Down Converter,Boost/Buck Voltage Regulator,Regulated Converter Module,Over Current, Short Circuit, Over Temperature Protection
So you can check out the other reviews New Arrivals Voltage Converter Module DC 5-30V to 1.25-30V,Automatic Step Up/Down Converter,Boost/Buck Voltage Regulator,Regulated Converter Module,Over Current, Short Circuit, Over Temperature Protection at Amazon.com
only with $15.39
| Brand | Jectse |
| Item Dimensions LxWxH | 2.36 x 1.97 x 0.79 inches |
| Current Rating | 8 Amps, 10 Amps, 6 Amps |
| Item Weight | 70 Grams |
- 【Regulated power converter module】 - This is a non-isolated DC regulated power converter module with long service life.High power and stable output, it converts 5-30VDC to 1.25-30VDC.
- 【High quality】- High quality components ensures high conversion efficiency, up to 93%.Designed with two heat sinks for better heat dissipation.It supports over current, short circuit, over temperature protection.
- 【Specification】 - ❶Input Voltage: DC5-30V❷Input Current: 8A, (MAX) 10A, (within 6A for long-term work)❸Output Voltage: 1.25-30V continuously adjustable❹Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65❺Constant Current Output Range: 0.2-10A
- 【Note】 -If reverse input protection is required, connect a diode in series with the input. Wiring method: terminal output, (input is IN, output is OUT)
Product Description
Specification:
Type: Non-isolated synchronous rectification automatically step up/down module
Input Voltage: DC5-30V
Input Current: 8A, (MAX) 10A, (within 6A for long-term work)
Quiescent Current: 4mA (there will be deviation when working voltage is different)
Output Voltage: 1.25-30V continuously adjustable
Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65℃
Constant Current Output Range: 0.2-10A
Operating Temperature: -40℃ to +85℃
Frequency: 150KHz
Conversion Efficiency: Typical 91%, maximum 93%
Over Current Protection: Yes
Short Circuit Protection: Yes (current limiting protection)
Over Temperature Protection: Yes (automatic reduce output voltage)
Reverse Input Protection: No, please connect to a diode in series at input if needed
Output Flow Back Protection: Yes, do not need to add the diode when used for charging.

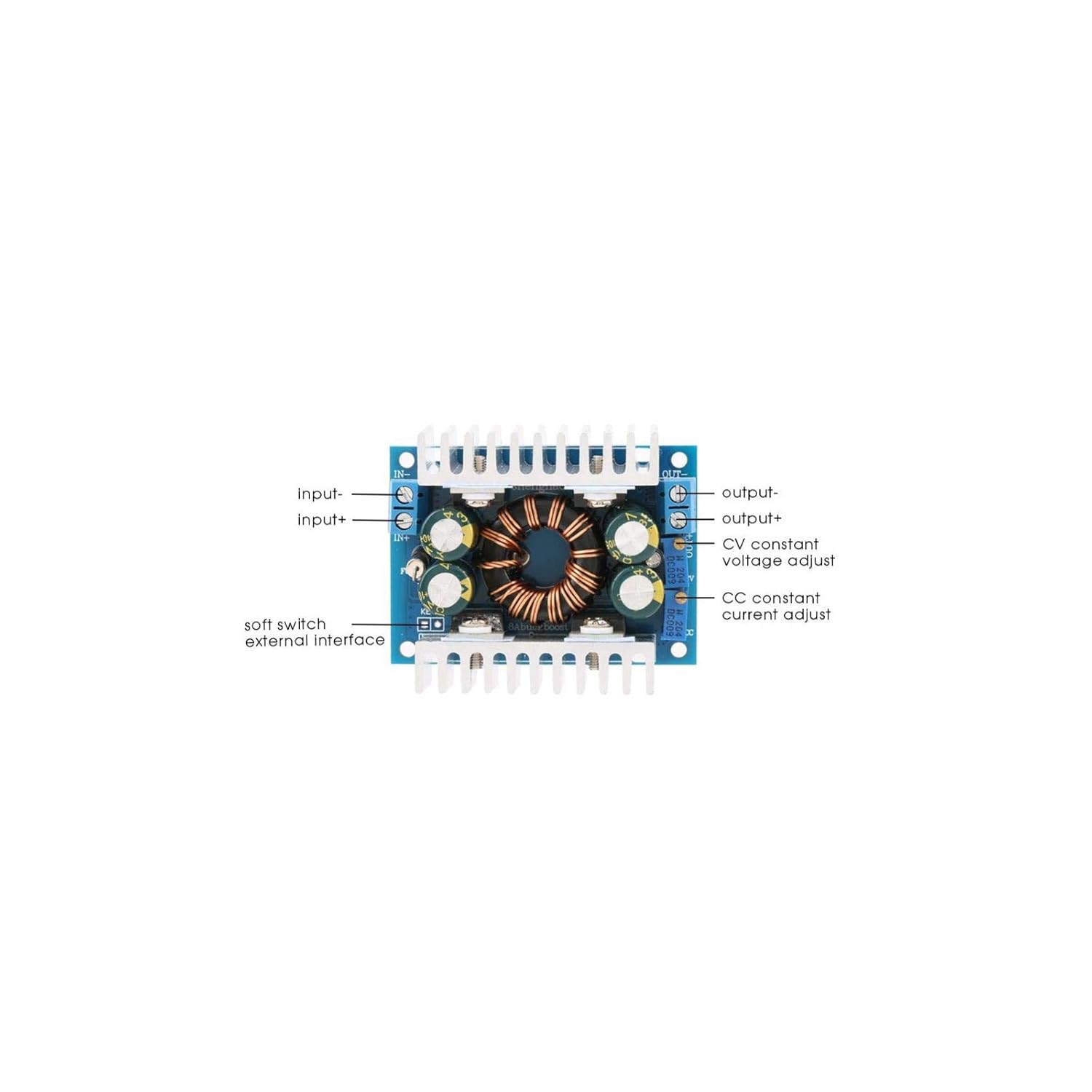

Wiring Method: Terminal block output, (IN is input, OUT is output)
Weight: 70g / 2.5oz (approx.)
Package list:
1 * Module
